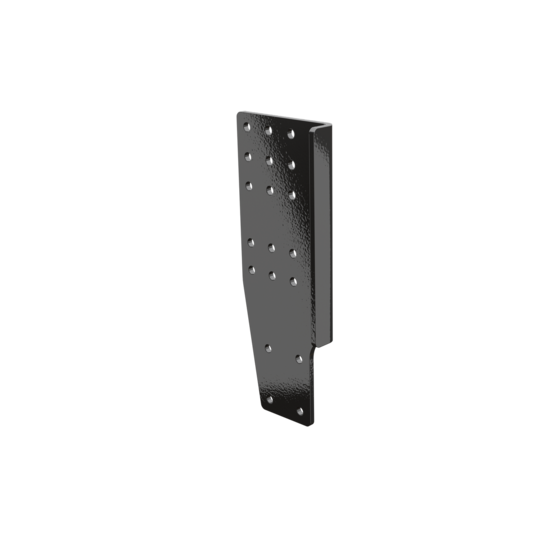

VBG Seitenplattensatz EDSU 180 Volvo/RVI H=140, 21-680278
The EDSU endplate kit is intended for semi-underslung drawbeam installation and underrun protection.Approved in accordance with UNECE R58 Revision 3.
| Weight | 17.6 kg |
|---|---|
| Size | M14 |
| Vehicle manufacturer | Volvo, Renault |
| Hole pattern chassi | 50 x 60 mm |
| Screw consumption (pcs) | 24 |
| Installation | Semi underslung mounted |
| G - Measurement | 140 |
| Required frame stiffness (cm4) | min 5700 |
| Surface Treatment | Powder coating |
| Color | Gray |
| VBG End plate EDSU H=140 Volvo_RVI - Information drawing.dxf | Information Drawing |
|---|---|
| VBG Underrun protection - Mounting instruction - 38-324100.pdf | Mounting Instruction |
