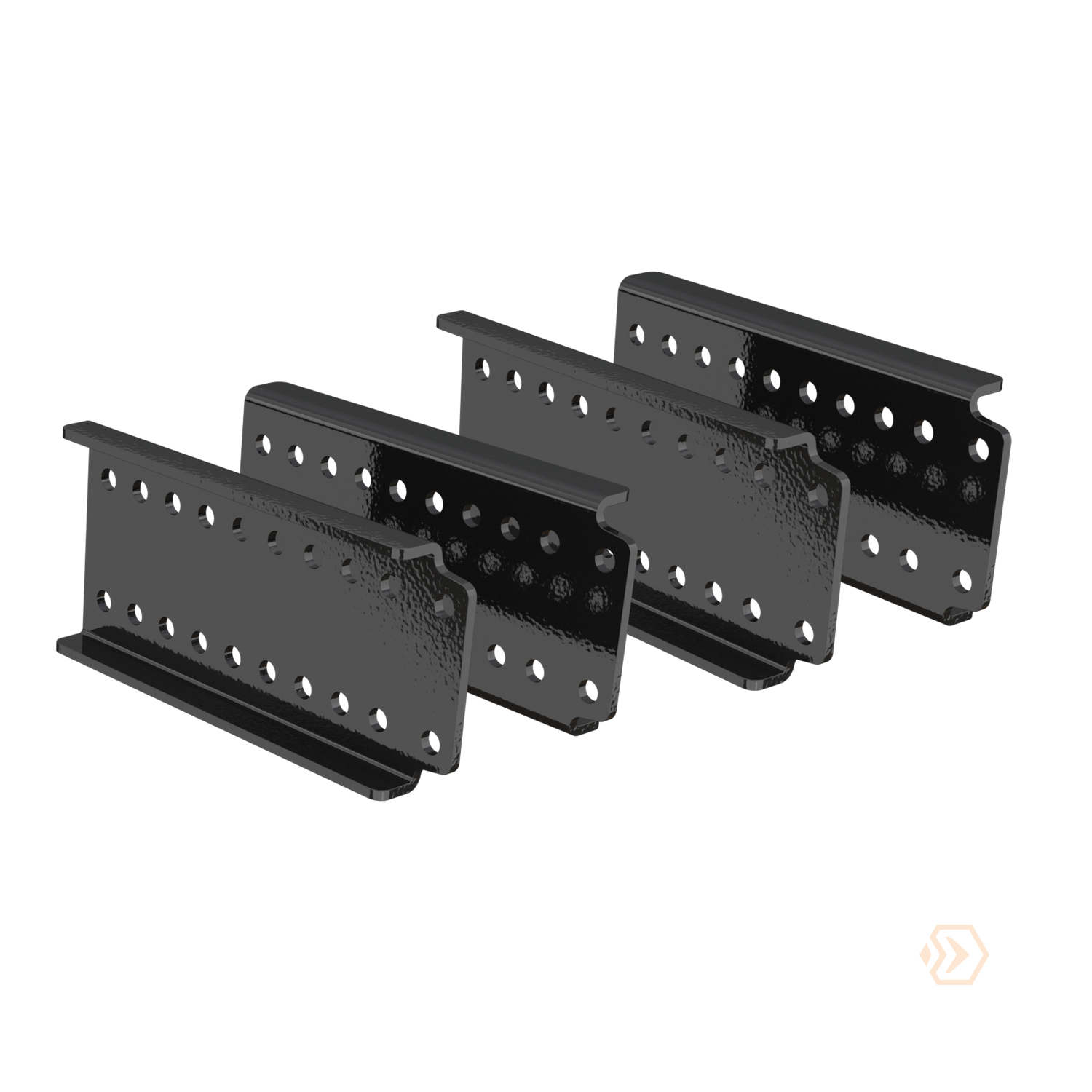

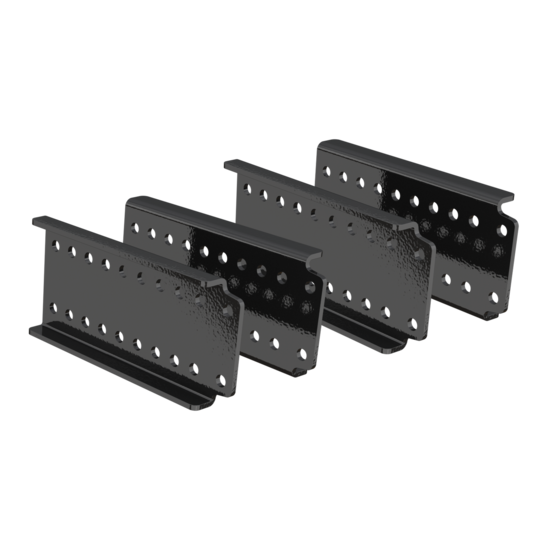

VBG horizontal extension UPS 180 4 pcs., 21-699078
For rearward positioning of the underrun protection.The UPS 180 attachment makes it possible to move in increments of 37,5 mm, up to max. 262 mm.Depending on which endplate you use, different mounting kits and numbers are required.UPS 180 may be mounted on the following endplates:EDSU endplates requires two installation kits with Part No. 21-699078EHU 180 and EUM 180 endplates requires two installation kits and crossmember with Part No. 21-699178
| Weight | 22 kg |
|---|---|
| Size | M16 |
| Screw consumption (pcs) | 8 |
| Required frame stiffness (cm4) | min 5700 |
| Surface Treatment | Powder coating |
| Color | Gray |
| Type of end plate | EDSU |
| Regulation | R58 version 3 |
| VBG Horizontal extension UPS 180 - 21-699078 - Information drawing.dxf | Information Drawing |
|---|---|
| VBG Moved backwards mounting UPS 180 - Mounting instruction - 38-326100.pdf | Mounting Instruction |
