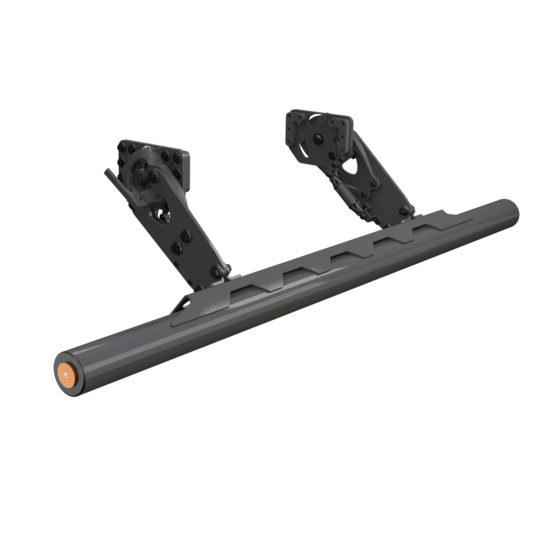

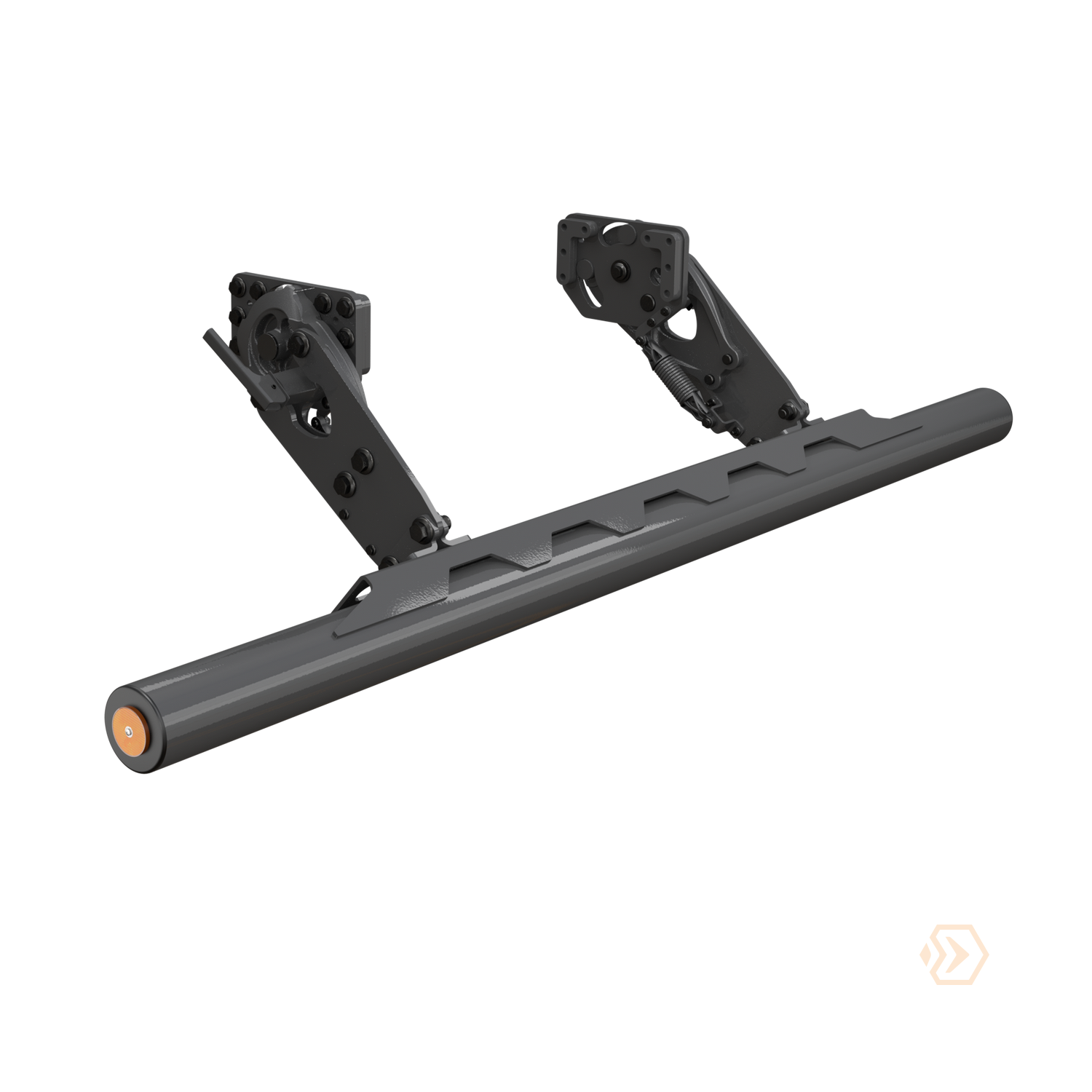

VBG Foldable - Underrun Protection EUF 180-500-Volvo/RVI, 21-658078
VBG foldable underrun protection system.A system with a steel, cylindrical profile protective beam that makes it easy and convenient to raise and lower the protective beam when necessary. For example, to be able to reach a low and far underslung coupling with large-volume cargo trailers.The user-friendly design means you avoid difficult and dangerous work procedures when operating the system.The protective beam can be installed together with any of VBG’s drawbeams.
| Weight | 102 kg |
|---|---|
| Type approval no. | E1*58R-03*0586 |
| Vehicle manufacturer | Volvo, Renault |
| Required frame stiffness (cm4) | min 5700 |
| Surface Treatment | Powder coating |
| Regulation | R58 version 3 |
| Protection beam model | Circular profile |
| Material | Steel |
| Color on protection beam | Grey |
| Arm Movement (mm) | 325 |
| Arm angle (°) | 40 |
| Arm length (mm) | 500 |
| VBG Underrun Protection EUF 180 - Volvo_RVI - 500 - Information drawing.dxf | Information Drawing |
|---|---|
| VBG Steel beam UCSP 180 - Certificate_English.pdf | Certificate |
| VBG Foaldable EUF 180 - Mounting instruction - 38-322400.pdf | Mounting Instruction |
