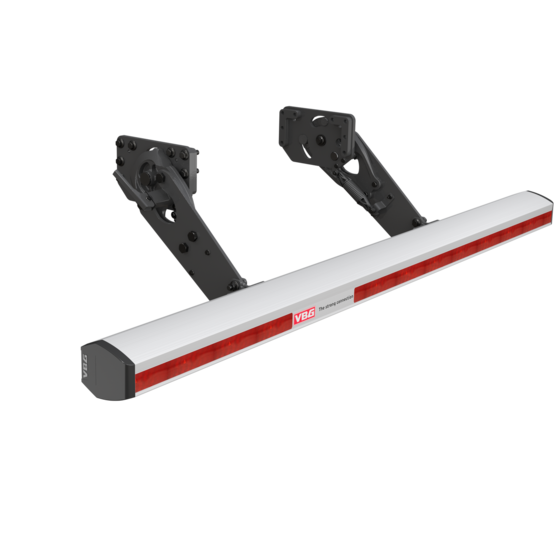

VBG Foldable - Underrun Protection EUF 180-321-Volvo/RVI, 21-664378
VBG foldable underrun protection system.A system with an aluminium protective beam that makes it easy and convenient to raise and lower the protective beam when necessary. For example, to be able to reach a low and far underslung coupling with large-volume cargo trailers.The user-friendly design means you avoid difficult and dangerous work procedures when operating the system.The protective beam can be installed together with any of VBG’s drawbeams.
| Weight | 92.4 kg |
|---|---|
| Type approval no. | E1*R58*03*0585 |
| Vehicle manufacturer | Volvo, Renault |
| Required frame stiffness (cm4) | min 5700 |
| Surface Treatment | Powder coating |
| Regulation | R58 version 3 |
| Protection beam model | Aluminum |
| Material | Aluminum |
| Color on protection beam | Aluminum |
| Arm Movement (mm) | 321 |
| Arm angle (°) | 40 |
| VBG Underrun Protection EUF 180 - Volvo_RVI - 585 - Information drawing.dxf | Information Drawing |
|---|---|
| VBG Installation Report R58-03 - 38-321500.pdf | Certificate |
| VBG Foaldable EUF 180 - Mounting instruction - 38-322400.pdf | Mounting Instruction |
