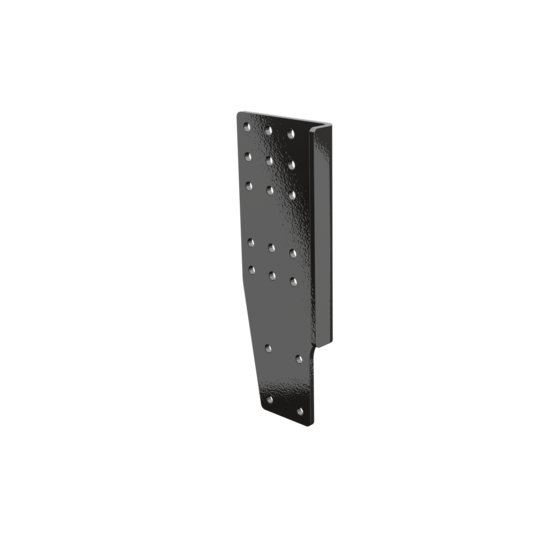

VBG Endplate kit EDSU 180 DAF H=190, 21-678778
The EDSU endplate kit is intended for semi-underslung drawbeam installation and underrun protection.Approved in accordance with UNECE R58 Revision 3.
| Weight | 21.4 kg |
|---|---|
| Size | M16 |
| Vehicle manufacturer | DAF |
| Hole pattern chassi | 60 x 60 mm |
| Screw consumption (pcs) | 20 |
| Installation | Semi underslung mounted |
| G - Measurement | 190 |
| Required frame stiffness (cm4) | min 5700 |
| Surface Treatment | Powder coating |
| Color | Gray |
| VBG End plate EDSU H=190 DAF - Information drawing.pdf | Information Drawing |
|---|---|
| VBG Underrun protection - Mounting instruction - 38-324100.pdf | Mounting Instruction |
