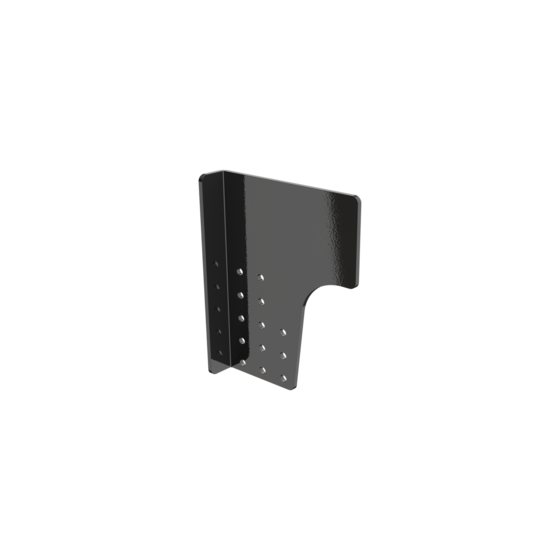

VBG Endplate kit EDF 250 350x580, 21-574078
The EDF 250 endplate kit is intended for fully underslung drawbeam installation.Intended for holes bored within the reference dimensions.EDF 250 is available in 2 different length.
| Weight | 30.2 kg |
|---|---|
| Size | M14/M16 |
| Vehicle manufacturer | Universal |
| Hole pattern chassi | Undrilled mm |
| Screw consumption (pcs) | Min 24 |
| Mounting height | Low |
| Coupling height End plate (mm) | 245-300 |
| Installation | Underslung mounted |
| Dimension (w x h) | 350 x 580 |
| VBG Endplate EDF 250 - 21-574078 - Information drawing.pdf | Information Drawing |
|---|---|
| VBG End plate EDF 250 - Mounting instruction - 38-300300.pdf | Mounting Instruction |
