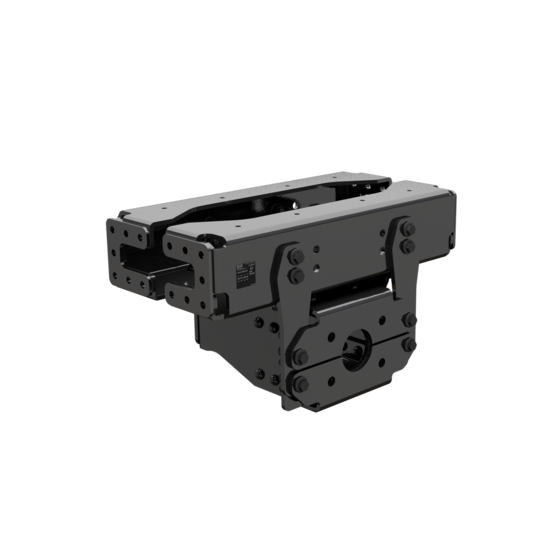

VBG Drawbeam system CMS 63V Volvo H=255, 21-584978
A drawbeam system that is adapted to the vehicle, close-fitting and with a bolted/riveted design that makes it easy to mount on the chassis. CMS 63V is designed for bodyworks with short overhangs where there is no room for external endplate installation. This beamis also available customised and equipped with mountings for one of VBG’s underride protection systems.The drawbeam system is delivered fully assembled.
| Weight | 127 kg |
|---|---|
| EU coupling class | F |
| D value (kN) | 188 |
| Dc value (kN) | 141 |
| S value (kg) | 1000 |
| V value (kN) | 63 |
| Size | M14 |
| Length | 826 mm |
| Vehicle manufacturer | Volvo |
| Hole pattern chassi | 50 x 60 mm |
| Screw consumption (pcs) | 32 |
| Coupling height | 255 |
| VBG drawbeam CMS 63V Volvo_RVI H=225 - Information drawing_English.zip | Information Drawing |
|---|---|
| VBG drawbeam CMS 63V - Certificate_English.pdf | Certificate |
| VBG drawbeam CMS 63V - Mounting instruction - 38-234500.pdf | Mounting Instruction |
