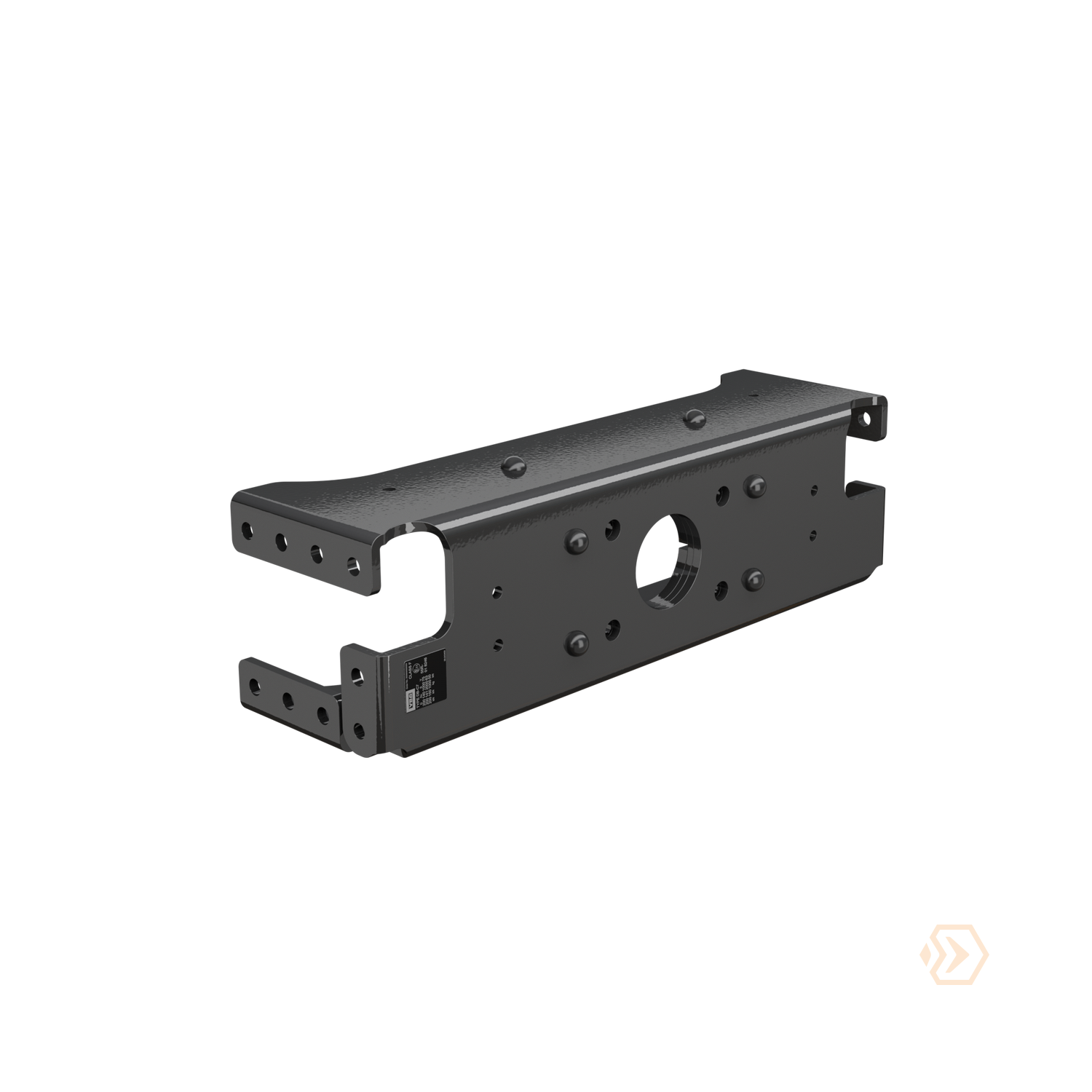

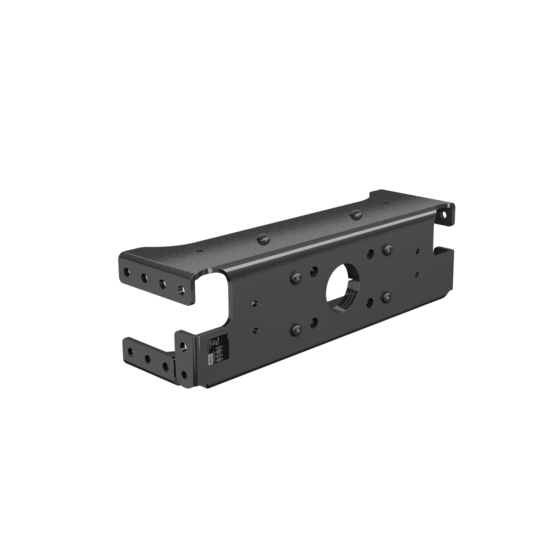

VBG Drawbeam DB-C7 Mercedes 50x50 L=834, 20-112378
DB C7 is a vehicle-customised drawbeam for central or semi-underslung installation. It is supplied with a hole pattern corresponding to the respective truck manufacturer's specifications and requirements, which saves time and costs when mounting. The DB C7 drawbeam can be installed at three different heights, where all the positions on the chassis frame can be used: two positions for central installation and one for semi-underslung installation. This provides you with greater flexibility and makes bodybuilding work simple, fast and cost-effective.
| Weight | 56 kg |
|---|---|
| EU coupling class | F |
| Hole pattern coupling | 160 x 100 mm |
| Type approval no. | E11*55R-018246 |
| D value (kN) | 200, 200, 200 |
| Dc value (kN) | 140, 141, 150 |
| S value (kg) | 1000, 2000, 1000 |
| V value (kN) | 75, 63, 50 |
| Size | M16 |
| Length | 834 mm |
| Vehicle manufacturer | Mercedes |
| Screw consumption (pcs) | 26/32* Use Mercedes original screws to meet Mercedes mounting requirements. |
| VBG drawbeam DB C7 Mercedes L=834 - Information drawing_English.pdf | Information Drawing |
|---|---|
| VBG drawbeam DB C7 - Certificate_English.pdf | Certificate |
| VBG drawbeam DB C7 - Mounting instruction - 38-233400.pdf | Mounting Instruction |
