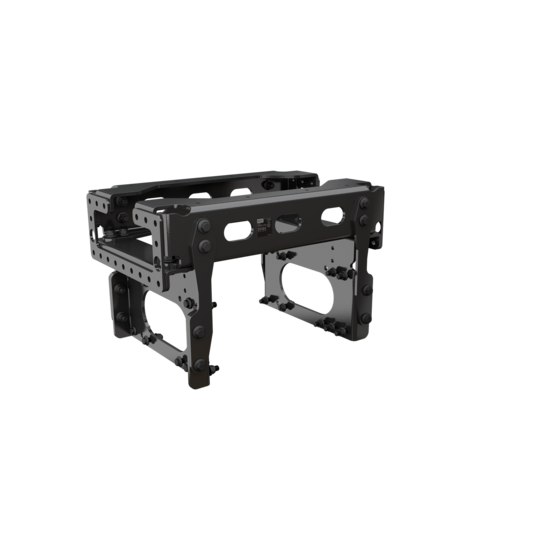

VBG Drawbeam CMS-MFC 75V-3 Volvo (400/175/826), 21-601678
A specially designed drawbeam system for underslung installation of the VBG MFC fully automatic coupling.Drawbeam CMS-MFC is available in two variants for low or high coupling positions.The drawbeam system is supplied with spacers (if the truck frame has inner liner) and a screw kit for the coupling part.
| Weight | 88.9 kg |
|---|---|
| Type approval no. | E11*55R-0110663 |
| D value (kN) | 188, 188 |
| Dc value (kN) | 130, 147 |
| S value (kg) | 1000, 1000 |
| V value (kN) | 75, 35 |
| Size | M14 |
| Length | 826 mm |
| Vehicle manufacturer | Volvo, Renault |
| Hole pattern chassi | 50 x 60 mm |
| Screw consumption (pcs) | 28 |
| Coupling height | 175 |
| VBG drawbeam CMS-MFC Volvo_RVI 400-175-826 - Information drawing_English.zip | Information Drawing |
|---|---|
| VBG drawbeam CMS-MFC 75V-3 - Certificate_English.pdf | Certificate |
| VBG Drawbeam CMS-MFC - Mounting instruction - 38-312800.pdf | Mounting Instruction |
