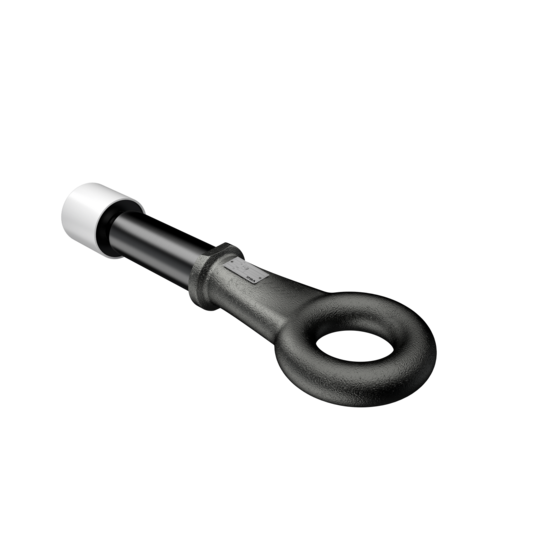

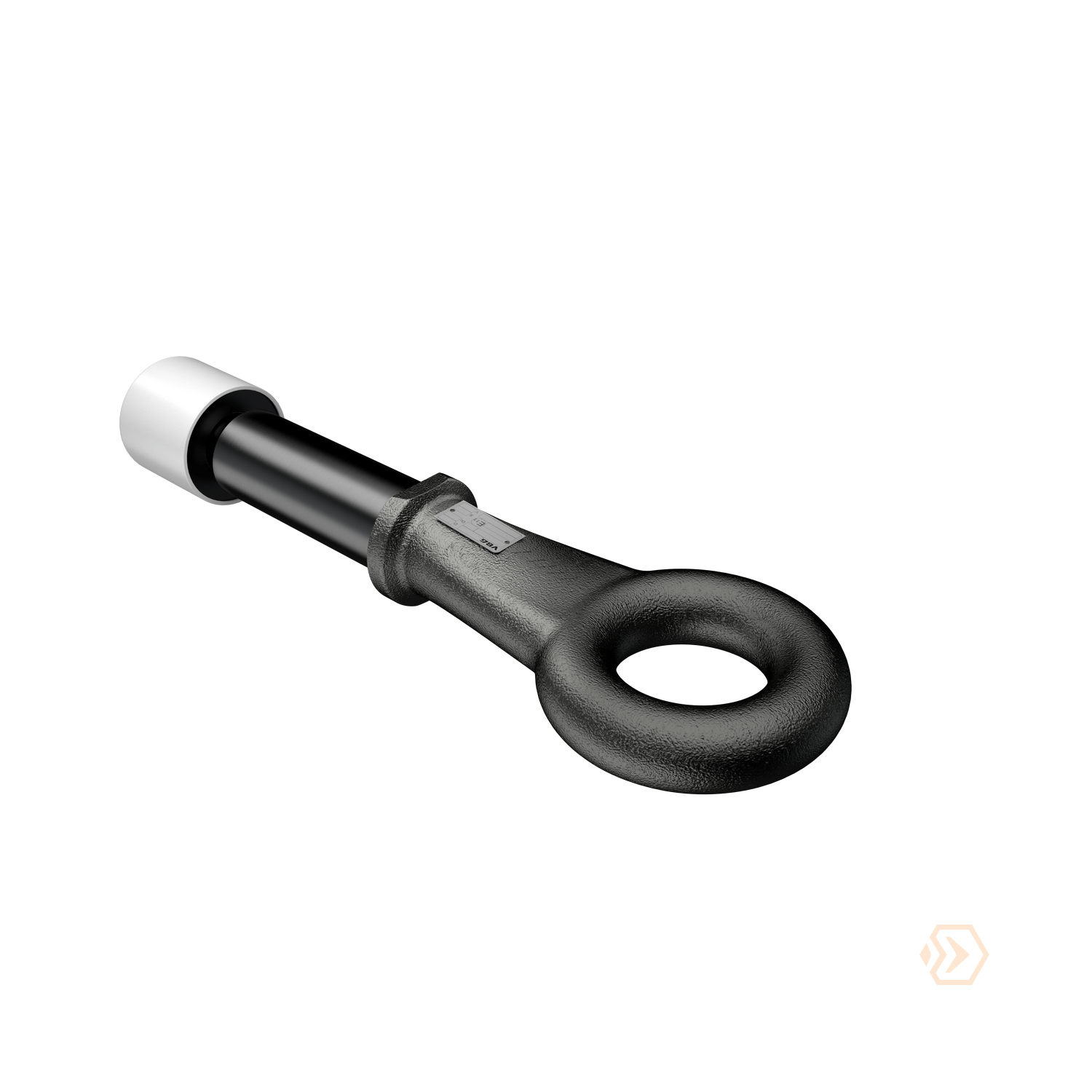

VBG Drawbar eye DBE172
Drawbar eye Ø 76 mm NATO in accordance with VG 74059. In accordance with ECE 55R, class S.
| Weight | 13.3 kg |
|---|---|
| EU coupling class | S |
| Drawbar eye Ø | 76 mm |
| D value (kN) | 190 |
| Dc value (kN) | 120 |
| S value (kg) | 1000 |
| V value (kN) | 40 |
| VBG Drawbar eye DBE172 - Information drawing_English (DWG).dxf | Information Drawing |
|---|---|
| VBG Drawbar eye DBE172 - Certificate_English.pdf | Certificate |
| VBG Screwed Drawbar Eyes - Mounting instruction - 38-236100.pdf | Mounting Instruction |
