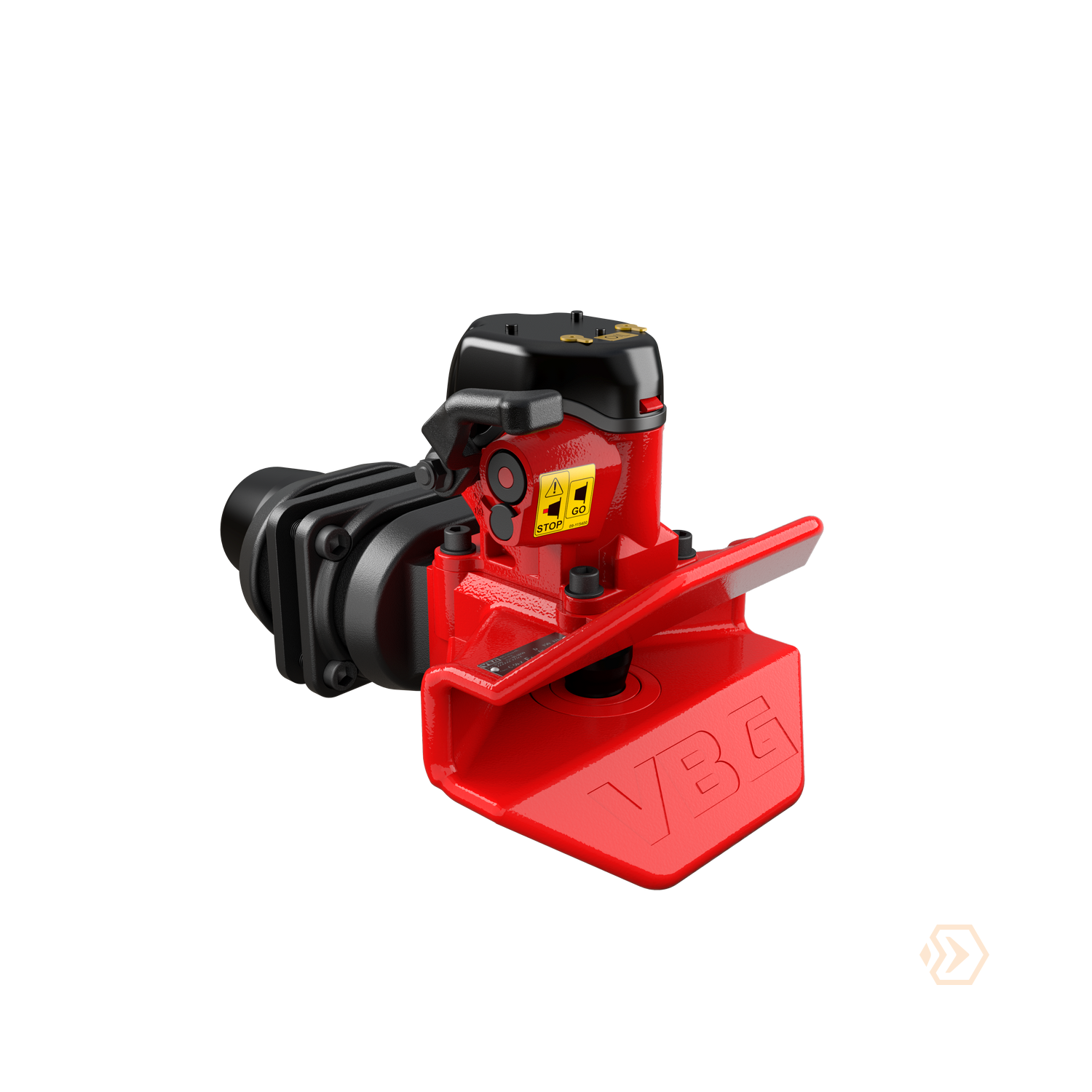

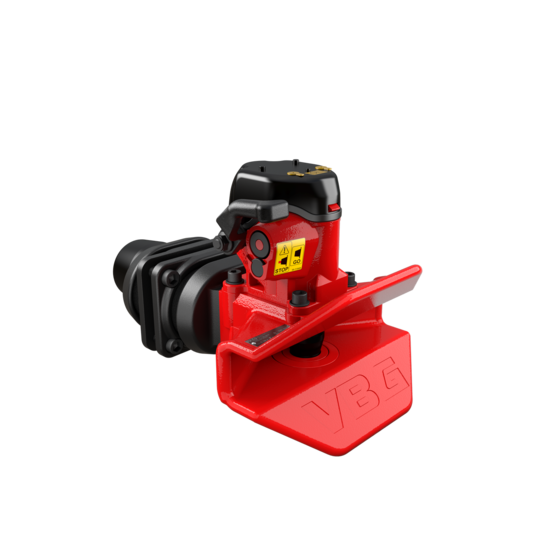

Coupling VBG 8500
A comfort coupling for trailers with an articulated drawbar and ISO Ø 50 mm drawbar eye. The robust design and small number of components ensure low running costs and reliable operation. The well-proven attachment package affords you first-rate driving comfort.
| Operation | Manual |
|---|---|
| Weight | 38 kg |
| Drawbar | Articulated |
| EU coupling class | C50-X |
| Hole pattern coupling | 160 x 100 mm |
| Drawbar eye Ø | 50 mm |
| Type approval no. | E4*55R-010067 |
| D value (kN) | 190 |
| VBG Coupling 8500 - 08-009000 - Information drawing (DWG).zip | Information Drawing |
|---|---|
| VBG Couplling 8500 - Mounting instruction - 38-175000.pdf | Mounting Instruction |
| Drivers manual 38-233900.pdf | Users Manual |
| VBG Coupling 8500 - Certificate_English.pdf | Certificate |
