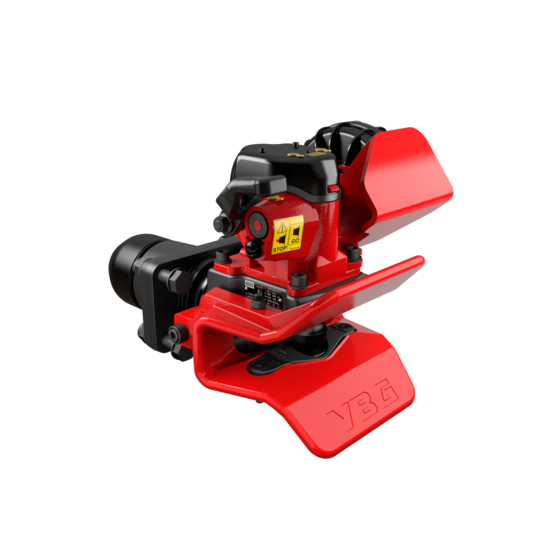

Coupling VBG 795V2 PA

This coupling is intended for heavy centre-axle trailers, twin steering axle trailers and dollies fitted with drawbar eyes in accordance with standard SS 550100-2 D57. The wise choice for those who operate heavy trailers, twin-steering axle trailers or dollies, require for high performance, and drive under more favourable road conditions. Thanks to the practical and user-friendly design, you get a reliable and durable coupling with low operating costs. The well-proven attachment package, with its large bearing surfaces, has been adapted for large vertical forces.

Operation Assisted
Coupling mouth Short lips
Weight 67 kg
Drawbar Fixed + Articulated
EU coupling class S
Hole pattern coupling 160 x 100 mm
Drawbar eye Ø 57 mm
Type approval no. E4*55R-010065
D value (kN) 290, 290
Dc value (kN) 145, 150
S value (kg) 1000, 2000
V value (kN) 95, 75
