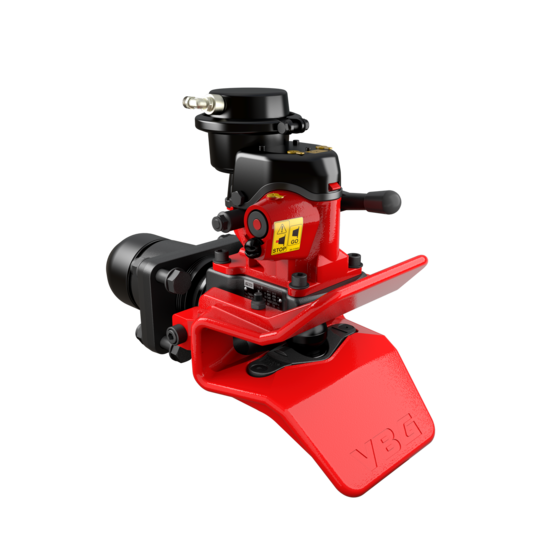

Coupling VBG 795V2 AM short/long guiding funnel
This coupling is intended for heavy centre-axle trailers, twin steering axle trailers and dollies fitted with drawbar eyes in accordance with standard SS 550100-2 D57. The wise choice for those who operate heavy trailers, twin-steering axle trailers or dollies, require for high performance, and drive under more favourable road conditions. Thanks to the practical and user-friendly design, you get a reliable and durable coupling with low operating costs. The well-proven attachment package, with its large bearing surfaces, has been adapted for large vertical forces.
Operation |
Semi Assisted |
Coupling mouth |
Short and long lip |
Weight
|
62 kg |
Drawbar |
Fixed + Articulated |
EU coupling class |
S |
Hole pattern coupling |
160 x 100 mm |
Drawbar eye Ø |
57 mm |
Type approval no. |
E4*55R-010065 |
D value (kN) |
290, 290 |
Dc value (kN) |
145, 150 |
S value (kg) |
1000, 2000 |
V value (kN) |
95, 75 |
