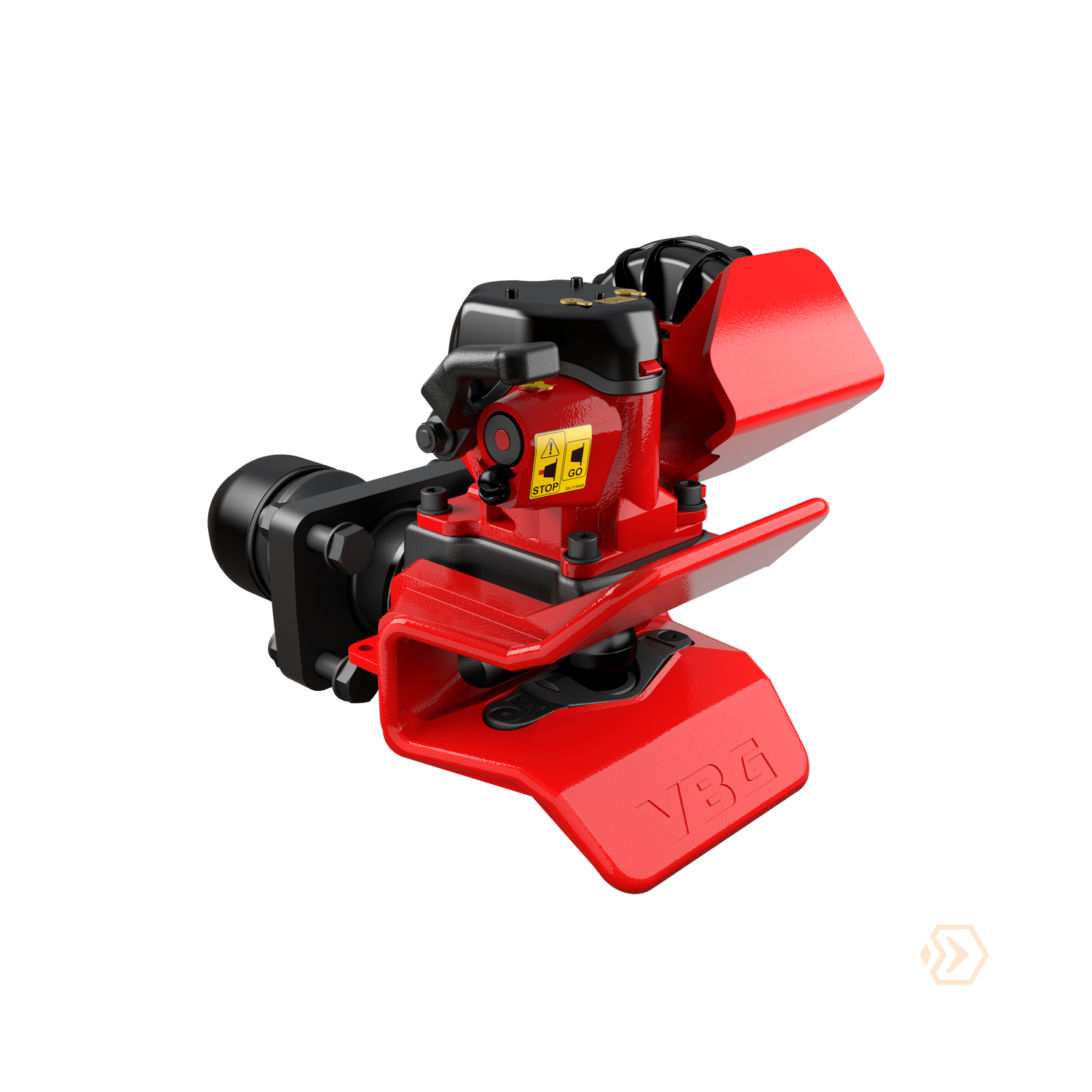

Coupling VBG 750 PA
This coupling is designed for centre-axle trailers, dollies and trailers equipped with drawbar eyes SS Ø 57 mm.A good choice for those who operate dump trailers, have low requirements for performance, and drive on more favourable road conditions. Thanks to the practical and user-friendly design, you get a reliable and durable coupling with low operating costs. The well-proven attachment package, with its large bearing surfaces, has been designed for vertical forces.
| Operation | Assisted |
|---|---|
| Weight | 66 kg |
| Drawbar | Fixed + Articulated |
| EU coupling class | S |
| Hole pattern coupling | 160 x 100 mm |
| Drawbar eye Ø | 57 mm |
| Type approval no. | E4*55R-010063 |
| D value (kN) | 190 |
| Dc value (kN) | 120 |
| S value (kg) | 1000 |
| V value (kN) | 50 |
| VBG Power actuator - Mounting instruction - 38-176500.pdf | Mounting Instruction |
|---|---|
| VBG Coupling 750V PA - 09-101700 - Information drawing (DWG).dxf | Information Drawing |
| Drivers manual 38-233900.pdf | Users Manual |
| VBG Coupling 750V - Certificate_English.pdf | Certificate |
