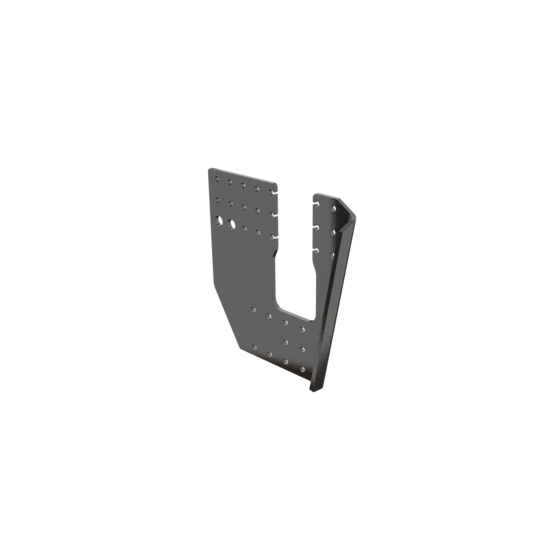

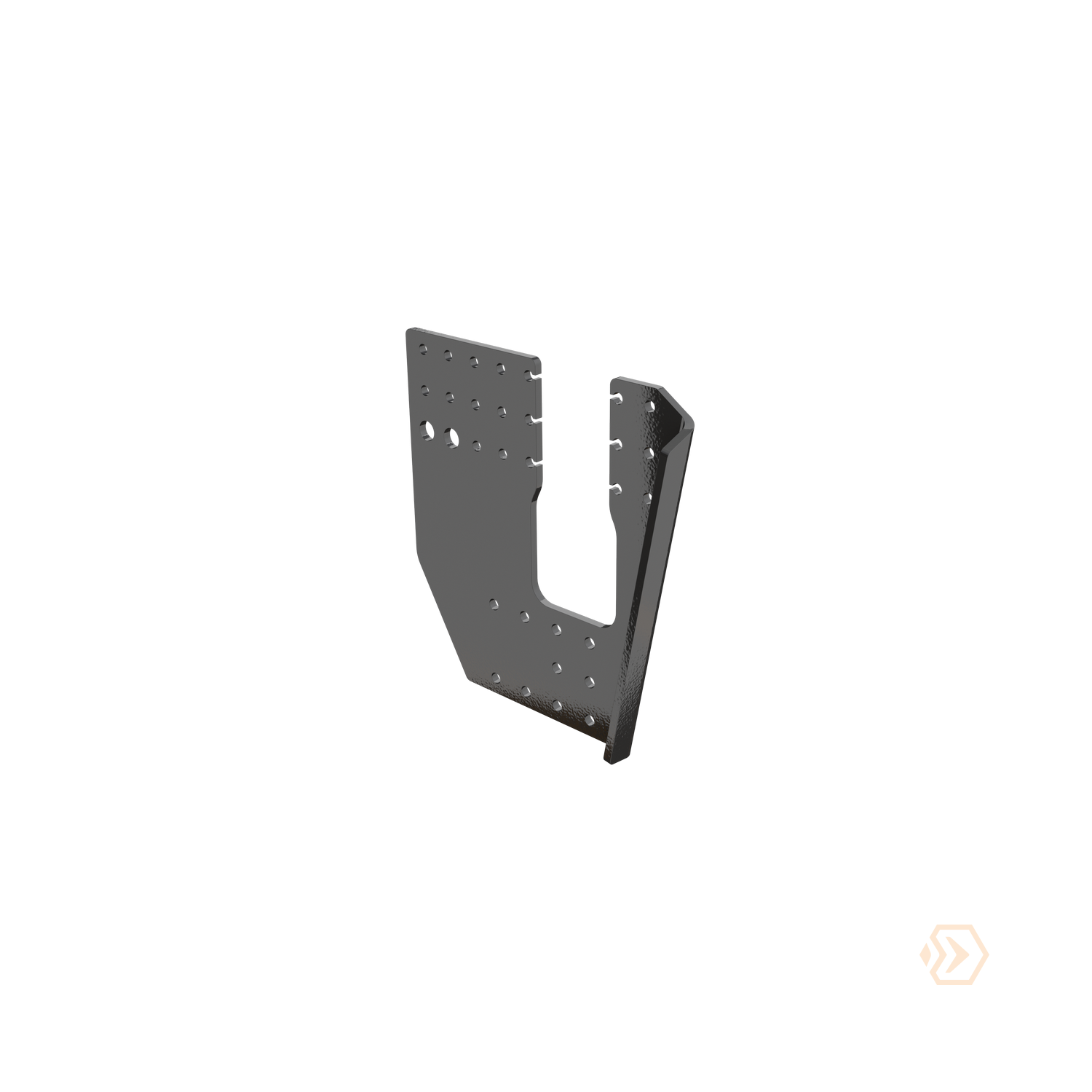

VBG Endplate kit EDMS-2, 21-164278
The endplate kit is primarily intended for Volvo B-ride/T-ride and fully underslung installation. Supplied in pairs. The endplate cannot be inverted!
| Weight | 37 kg |
|---|---|
| Size | M14 |
| Vehicle manufacturer | Volvo |
| Hole pattern chassi | 50 x 60 mm |
| Screw consumption (pcs) | 38 |
| Mounting height | Low |
| Coupling height End plate (mm) | 221-420 |
| Installation | Underslung mounted |
| VBG Mounting instruction - 38-154800.pdf | Mounting Instruction |
|---|---|
| VBG Endplate kit EDMS-2 - 38-171400 - Information drawing (DGW).dxf | Information Drawing |
