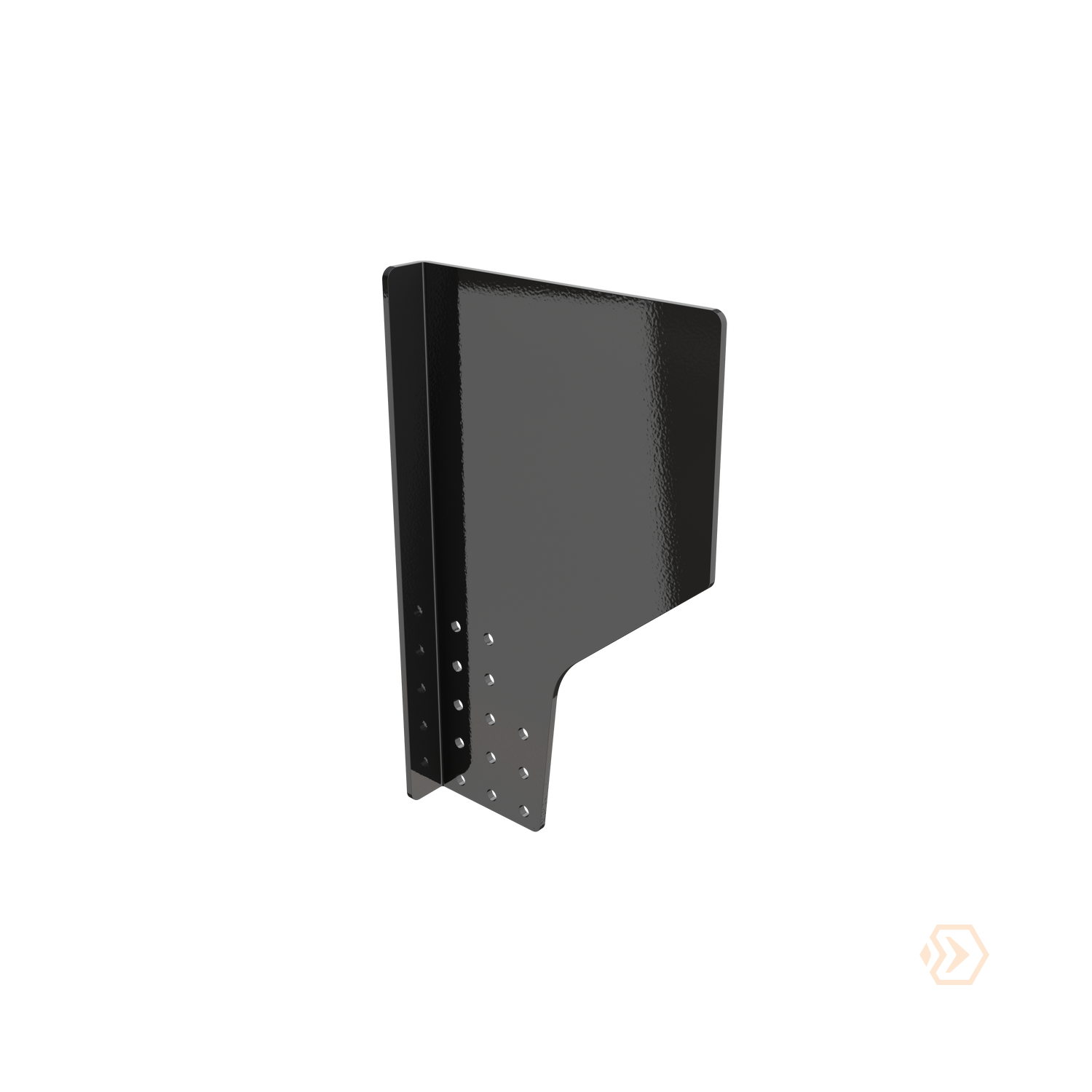

VBG Endplate kit EDF 350 450x730, 21-574578
The EDF 350 endplate kit is intended for fully underslung drawbeam installation. Intended for holes bored within the reference dimensions.
| Weight | 44.6 kg |
|---|---|
| Size | M14/M16 |
| Vehicle manufacturer | Universal |
| Hole pattern chassi | Undrilled mm |
| Screw consumption (pcs) | Min 24 |
| Mounting height | Low |
| Coupling height End plate (mm) | 380-460 |
| Installation | Underslung mounted |
| Dimension (w x h) | 450x730 |
| VBG Endplate EDF 350 - 21-574578 - Information drawing.pdf | Information Drawing |
|---|---|
| VBG End plate EDF 350 - Mounting instruction - 38-300100.pdf | Mounting Instruction |
