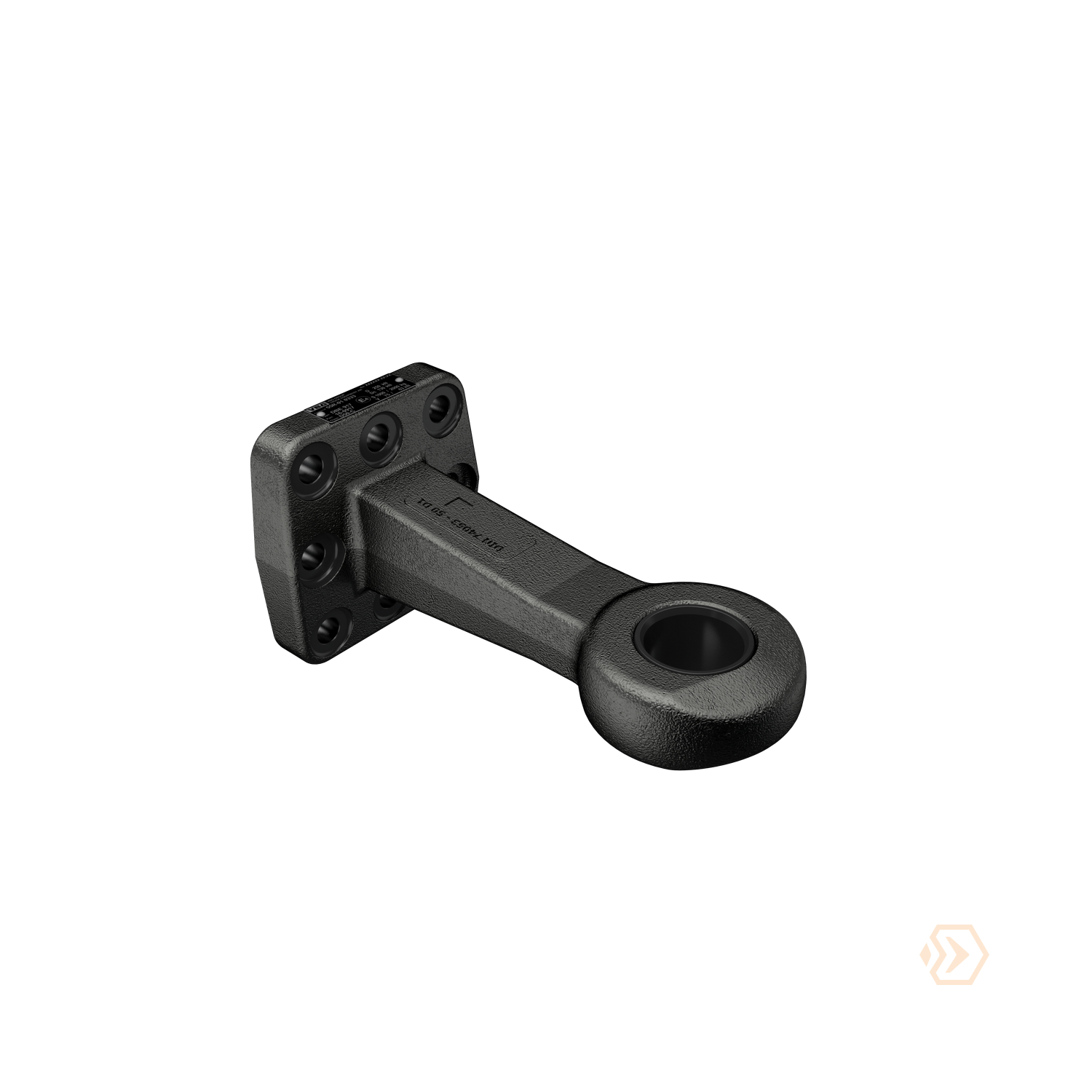

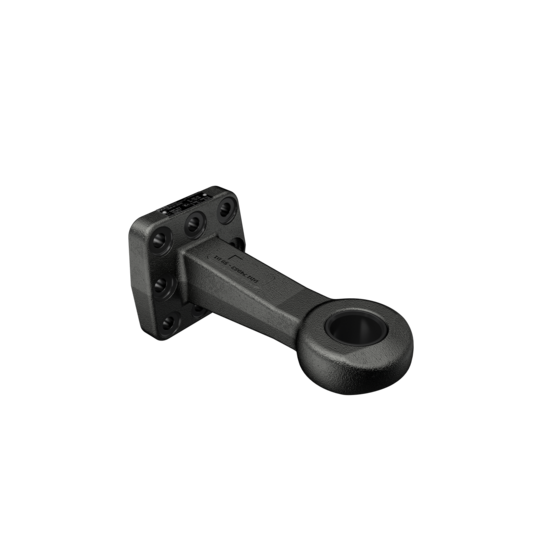

VBG Drawbar eye DBE 917
Drawbar eye Ø 50 mm in accordance with ECE 55R, class D50-C.Supplies complete with Screw Kit 15-020600
| Weight | 11.3 kg |
|---|---|
| EU coupling class | D50-C |
| Drawbar eye Ø | 50 mm |
| D value (kN) | 250, 250 |
| Dc value (kN) | 130, 130 |
| S value (kg) | 1000, 2000 |
| V value (kN) | 75, 63 |
| VBG Drawbar eye DBE917 - Information drawing_English (DWG).dxf | Information Drawing |
|---|---|
| VBG Drawbar eye DBE917 - Certificate_English.pdf | Certificate |
| VBG Flanged Drawbar Eyes - Mounting instruction - 38-236300.pdf | Mounting Instruction |
