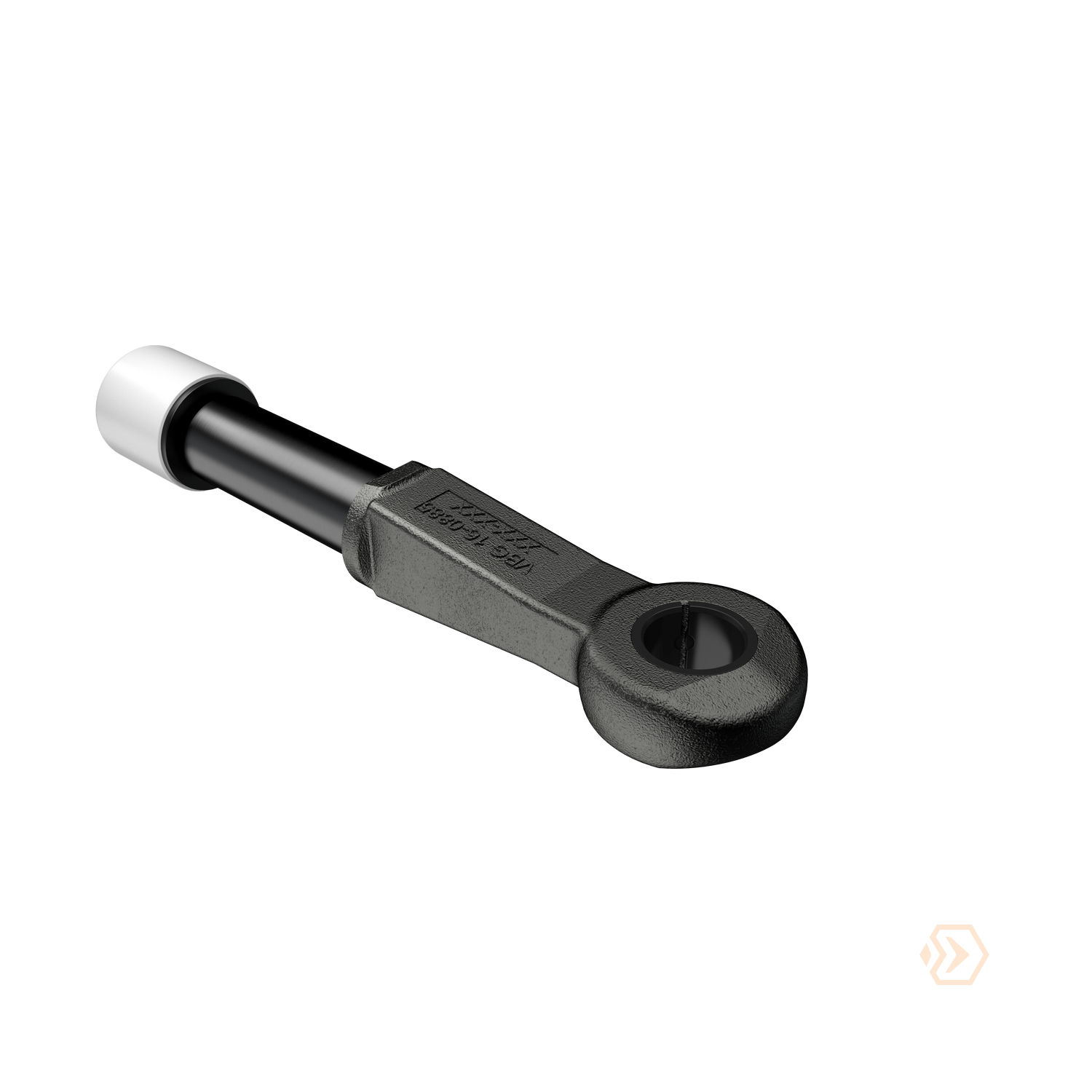

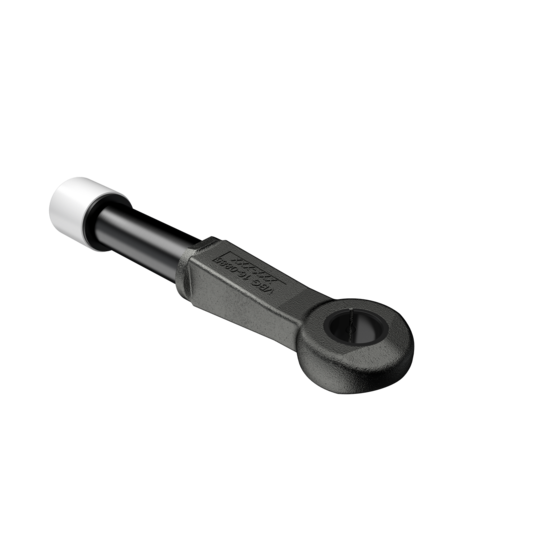

VBG Drawbar eye DBE 885
Drawbar eye Ø 50 mm in accordance with ECE 55R, class D50-X, equivalent to ISO 1102
| Weight | 12 kg |
|---|---|
| EU coupling class | D50-X |
| Drawbar eye Ø | 50 mm |
| D value (kN) | 190 |
| Dc value (kN) | 120 |
| S value (kg) | 1000 |
| V value (kN) | 40 |
| VBG Drawbar eye DBE 885 - 16-088500 - Information drawing (DWG).dxf | Information Drawing |
|---|---|
| VBG Drawbar eye DBE 885 - Cerificate E11+55R-013731+00_en.pdf | Certificate |
| VBG Screwed Drawbar Eyes - Mounting instruction - 38-236100.pdf | Mounting Instruction |
