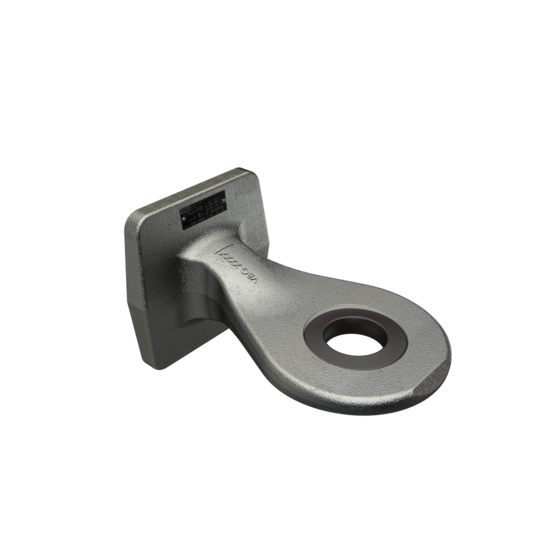

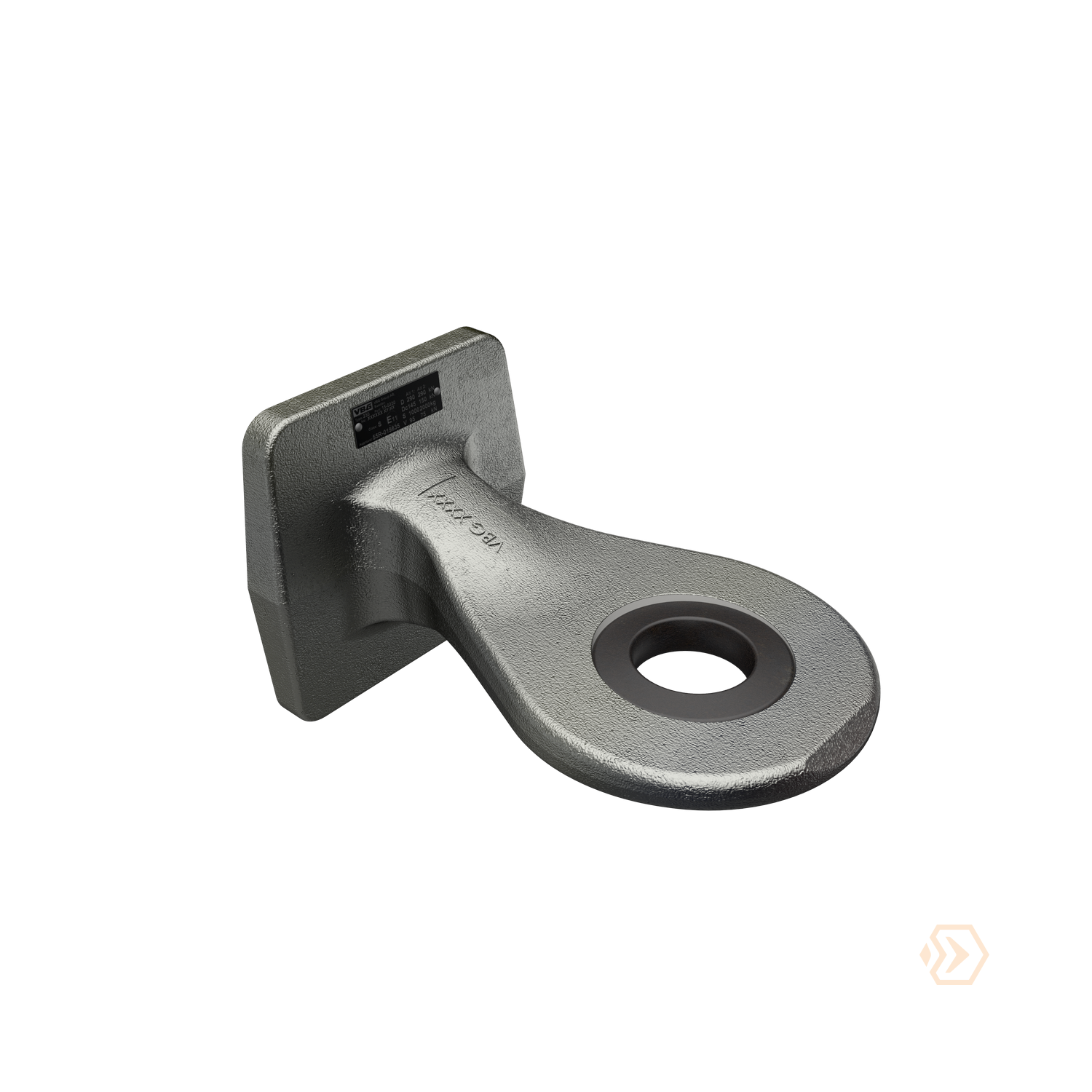

VBG Drawbar eye DBE 230
Drawbar eye Ø 57 mm. In accordance with ECE 55R, class S.In accordance with standards SS 550000-2 category 4 and SS 550100-2 D57
| Weight | 19.8 kg |
|---|---|
| Drawbar eye Ø | 57 mm |
| D value (kN) | 290, 290 |
| Dc value (kN) | 145, 150 |
| S value (kg) | 1000, 2000 |
| V value (kN) | 95, 75 |
| VBG Drawbar eye - Information drawing _English (DWG).dxf | Information Drawing |
|---|---|
| VBG Drawbar eye DBE 230 - Certificate_English.pdf | Certificate |
| VBG Drawbar eye - Mounting instruction _38-249900.pdf | Mounting Instruction |
