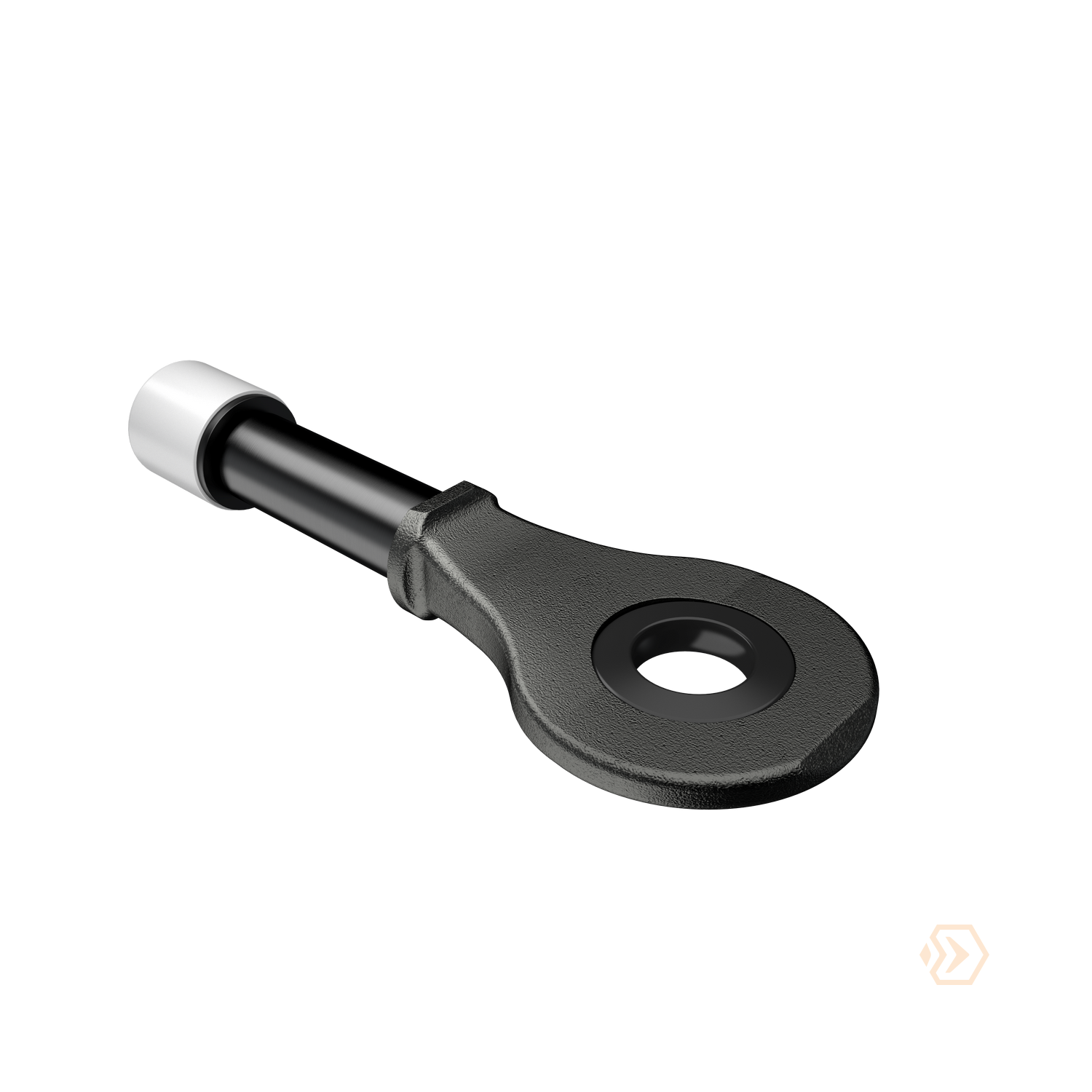

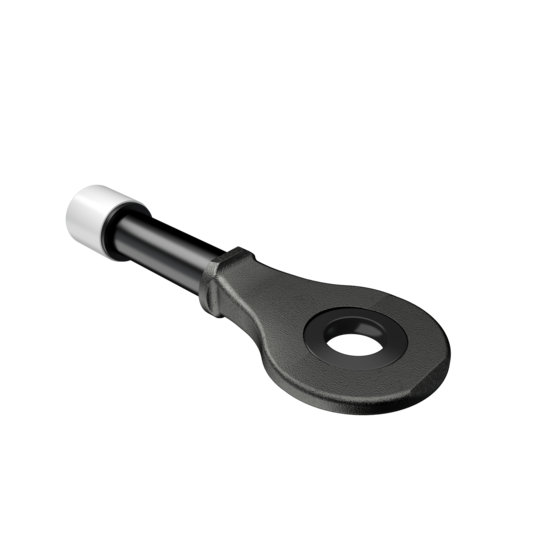

VBG Drawbar eye DBE 160
Drawbar eye Ø 57 mm. In accordance with ECE 55R, class S.In accordance with standards SS 550000-2 category 1 and SS 550100-2 D57.
| Weight | 13 kg |
|---|---|
| EU coupling class | S |
| Drawbar eye Ø | 57 mm |
| D value (kN) | 190 |
| Dc value (kN) | 120 |
| S value (kg) | 1000 |
| V value (kN) | 40 |
| VBG Drawbar Eye DBE 160 - 15-016000 - Information drawing_English (DWG).dxf | Information Drawing |
|---|---|
| VBG Drawbar Eye DBE 160 - Certificate_English.pdf | Certificate |
| VBG Screwed Drawbar Eyes - Mounting instruction - 38-236100.pdf | Mounting Instruction |
