VBG Drawbar eye DBE 157

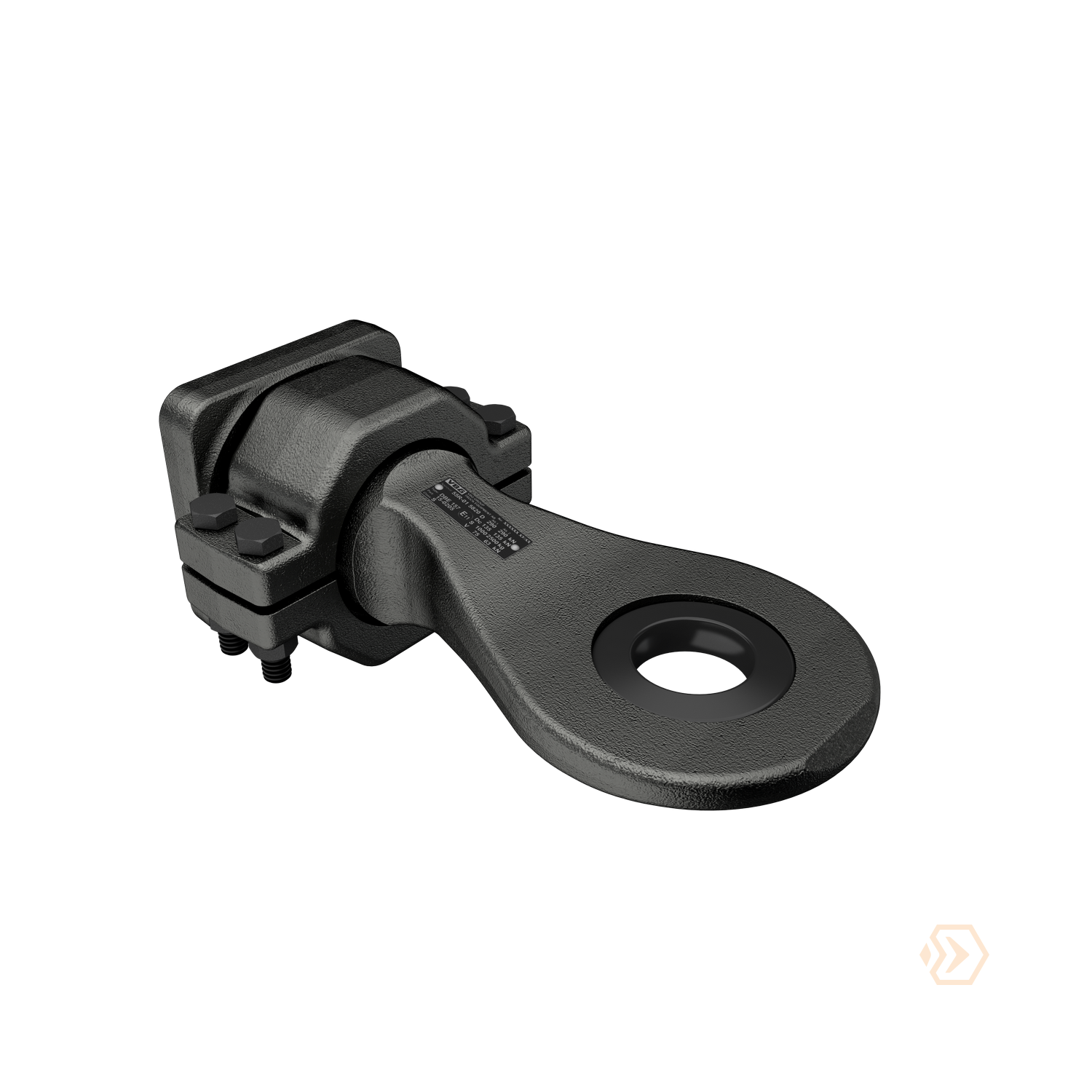

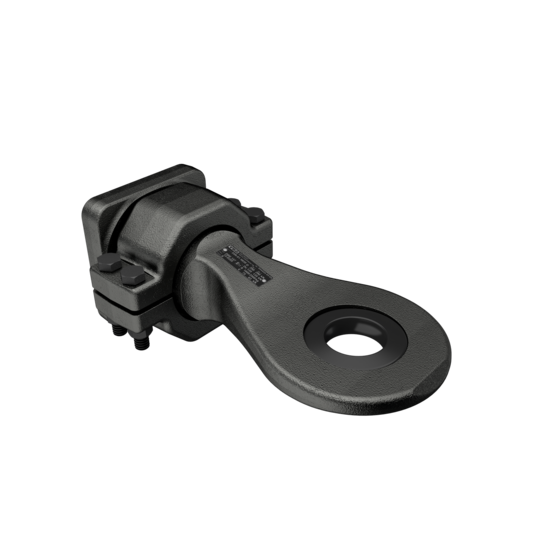

Drawbar eye Ø 57 mm. In accordance with ECE 55R, class S.In accordance with standards SS 550000-2 category X and SS 550100-2 D57.Supplied complete as per the image with a mounting plate and clamps.
| Weight | 20 kg |
|---|---|
| EU coupling class | S |
| Drawbar eye Ø | 57 mm |
| D value (kN) | 290, 290 |
| Dc value (kN) | 135, 135 |
| S value (kg) | 1000, 2500 |
| V value (kN) | 75, 63 |
| VBG Drawbar eye DBE157 - Mounting instruction - 38-236200.pdf | Mounting Instruction |
|---|---|
| VBG Drawbar eye DBE157 - Information drawing_English (DWG).zip | Information Drawing |
| VBG Drawbar eye DBE157 - Certificate_English.pdf | Certificate |
