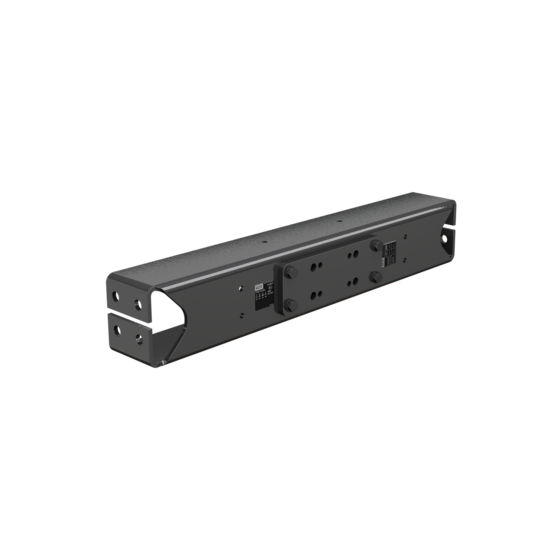

Drawbeam TB 30D L=770, 21-165978
TB 30D is a drawbeam intended for ball couplings, alternatively automatic couplings with flat connecting flange. The drawbeam can be installed centrally in the vehicle frame or completely underslung together with VBG endplate kit.
| Weight | 17.5 kg |
|---|---|
| EU coupling class | F |
| Hole pattern coupling | 120 x 55mm, 83 x 56 mm, 90 x 0 mm |
| Type approval no. | E11 55R-016701, e11 94/20*6701*01 |
| D value (kN) | 41 |
| Dc value (kN) | 30 |
| S value (kg) | 350 |
| V value (kN) | 18 |
| Size | M16 |
| Length | 770 mm |
| Vehicle manufacturer | Scania, Iveco, DAF |
| Screw consumption (pcs) | 8 st |
| Ball bracket - Mounting instruction - 38-170900.pdf | Mounting Instruction |
|---|---|
| VBG drawbeam TB 30D - Certificate_English.pdf | Certificate |
| VBG drawbeam TB 30D - Information drawing_English.pdf | Information Drawing |
